TECHNICAL COMPLIANCE

Millimeter-precision steel detailing

We engineer fabrication-ready shop and erection drawings modeled natively in Tekla. Every connection complies strictly with AISC and NISD standards to eliminate field-fit errors.

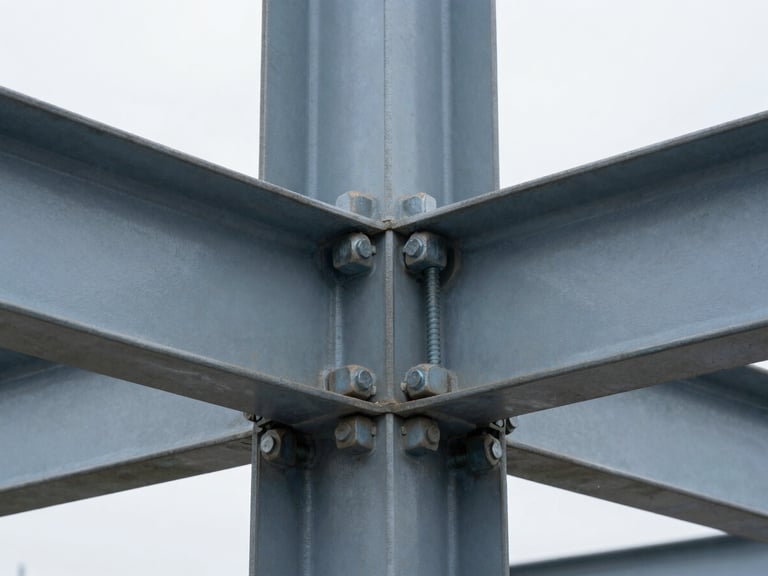

Macro close-up of a heavy steel bolted connection joint, crisp technical photography, cool overcast daylight, sharp focus, 35mm
Macro close-up of a heavy steel bolted connection joint, crisp technical photography, cool overcast daylight, sharp focus, 35mm

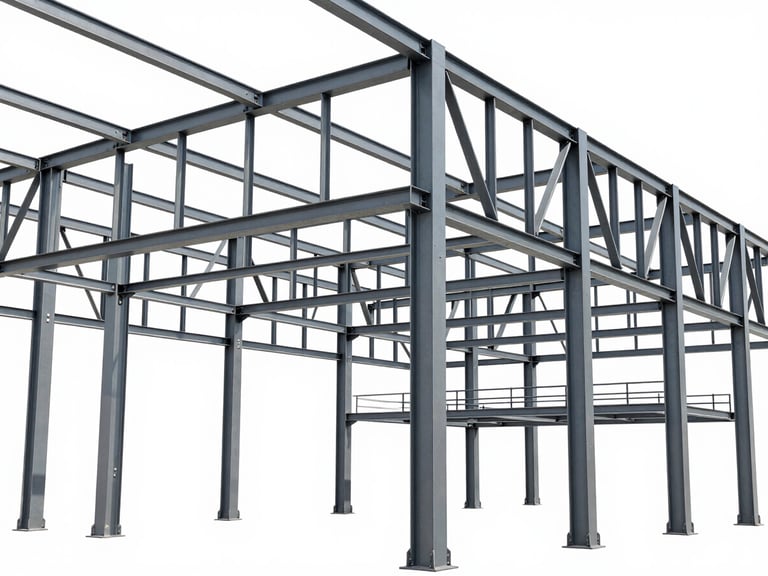

Crisp technical 3D Tekla structures model showing detailed steel trusses and columns, cool technical studio lighting, sharp focus, 35mm
Crisp technical 3D Tekla structures model showing detailed steel trusses and columns, cool technical studio lighting, sharp focus, 35mm
ENGINEERED STANDARDS

Rigorous structural compliance

01 / CODES

AISC & NISD compliance

Every connection detail is modeled to meet strict North American building codes. We eliminate ambiguity so fabricators can cut, drill, and weld with absolute confidence.

02 / INTEGRATION

Native Tekla modeling

Our team builds intelligent 3D BIM models that integrate seamlessly with your engineering workflows. Real-time clash detection identifies spatial conflicts before fabrication begins.

ZERO-ERROR TOLERANCE

Our multi-stage checking process

No drawing leaves our system without passing a rigorous three-tier QA review. We verify every dimension, bolt clearance, and weld symbol against your design documents.

100%

Clash-Free Models

3-Tier

QA Verification

AISC

Strict Compliance

Request a Rapid Quote

Ready for zero-error detailing?

Submit your design drawings and project specifications today. Our estimating team will analyze your requirements and deliver a comprehensive detailing proposal within 24 hours.
